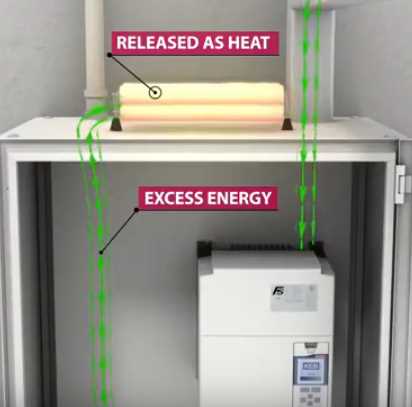

For high-power motor control applications where regenerative energy exceeds absorption capacity, integrate a switching resistor network rated for at least 30% of the drive’s continuous power. Position the load resistor directly across the DC bus to intercept surges before they destabilize voltage levels. Use an IGBT or MOSFET module matched to the bus voltage–1200V for 400VAC systems, 1700V for 690VAC–with a switching frequency between 1kHz and 5kHz to balance response time and thermal losses.
Configure the control signal to activate when bus voltage rises 10-15% above nominal, ensuring margin for transients. Implement hysteresis (±2-3%) to prevent chatter during dynamic braking. For variable-frequency drives (VFDs) under 100kW, pair the resistor with a snubber circuit (RC network: 0.1µF + 10Ω) to suppress voltage spikes during switch-off.
Select resistor wattage based on duty cycle: single-pulse dissipation requires calculated energy absorption (Joules), while repetitive braking demands steady-state power handling. For example, a 100kW drive with 60-second braking cycles needs a 20kW resistor for sustained operation. Ground the resistor’s chassis and isolate high-voltage components with minimum 8mm creepage per UL 840 to meet safety standards.
Monitor DC bus voltage with a high-speed comparator (response 1.2 × nominal) are reached. For redundancy, include a hardware crowbar circuit as a last-resort clamp. Test the system under worst-case conditions–abrupt load shedding–to verify no bus voltage exceeds 1.15 × maximum during transients.

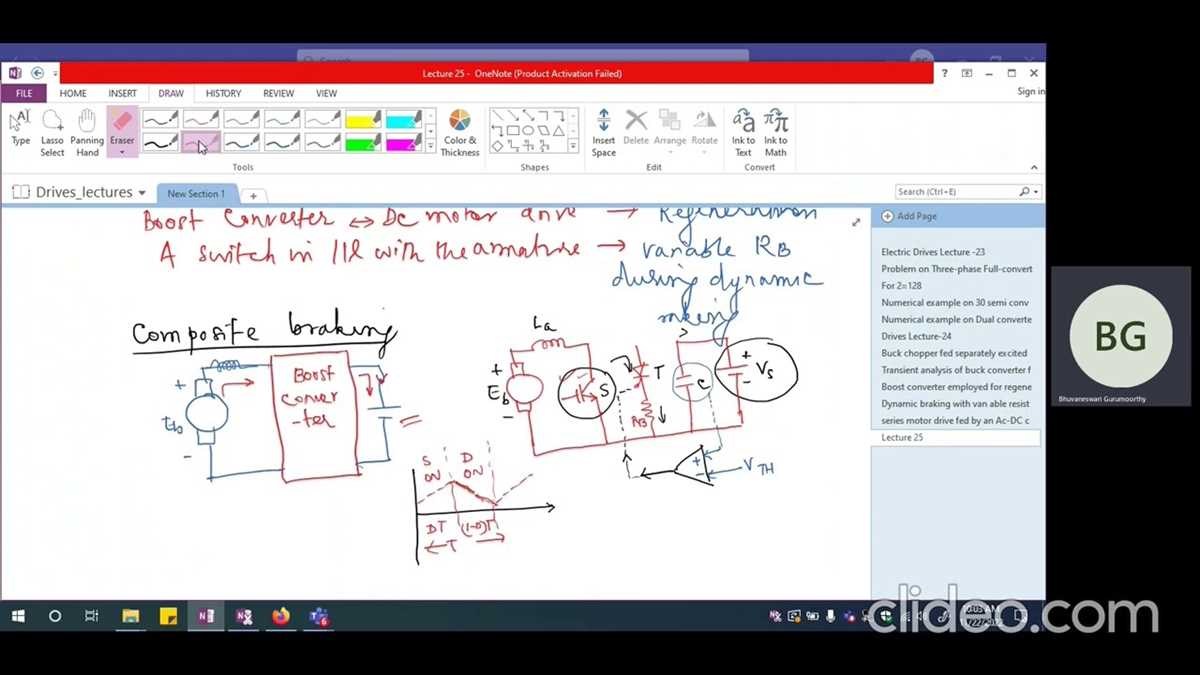

Dynamic Load Damping System Schematics
Integrate a IGBT module rated for at least 1200V/50A when designing resistance-based voltage clamping for three-phase inverters. Ensure the suppression component connects directly to the DC bus to prevent parasitic inductance–use twisted pair wiring for leads under 10cm. A 20Ω/250W ceramic power resistor dissipates energy efficiently during transient spikes up to 1.5kHz, but verify thermal derating curves for continuous duty cycles exceeding 30%.
Select a driver IC with galvanic isolation (e.g., ISO5500) to control the switching element–optocouplers introduce delay up to 2μs, causing overshoot in systems sensitive to sub-millisecond transients. Route high-voltage traces on the PCB with 3mm spacing to adjacent low-voltage sections, applying 2oz copper thickness to handle peak currents of 15A. Failure to observe these clearances risks arcing during repetitive clamping events, particularly in 690VAC applications.
Component Selection Guidelines
- Use film capacitors (X2 class) for DC link absorption–ceramic types crack under sustained ripple currents above 5A.
- Mount the suppression resistor vertically on a heatsink with thermal adhesive if ambient temperatures exceed 50°C.
- Avoid electrolytic capacitors for energy storage–they degrade under reverse voltage conditions common during regenerative braking.
- Test switching speeds with an oscilloscope–target rise/fall times under 100ns to minimize power dissipation in the switching element.
Implement a hysteresis controller using a comparator (e.g., LM311) to trigger the clamping action at 10% above nominal DC bus voltage, releasing at 5% below. This prevents chatter in servo drives where acceleration/deceleration cycles occur at 2Hz intervals. For systems with unpredictable load profiles, add a mechanical relay in parallel with the electronic switch–it acts as a fail-safe for over-temperature conditions, though its response time (≈20ms) limits use to low-frequency clamping (
For high-power applications above 15kW, distribute energy dissipation across multiple resistor banks. Each bank should handle no more than 70% of its rated power to prevent hotspots. Use star-point wiring rather than daisy-chaining to equalize current sharing–imbalances as small as 5% can reduce resistor lifespan by 40%. Apply conformal coating to PCBs if the installation includes cooling fans, as airborne conductive particles shorten creepage distances over time.
Failure Mode Mitigation
- Install MOV (metal oxide varistor) across the DC bus with a clamping voltage 15% higher than the suppression threshold–it absorbs voltage spikes exceeding IGBT ratings.
- Add a current-limiting fuse (fast-acting, 1.5× nominal) in series with the resistor to isolate faults without board damage.
- Use a thermistor adjacent to the resistor–configure it to disable the driver IC if temperatures reach 120°C.
- Test regenerative load dump scenarios with a programmable DC source–verify the system recovers within 200μs after a 10× overshoot event.
Simulate the entire damping network in SPICE before prototyping, modeling parasitic elements (trace inductance: 1nH/cm, capacitor ESR: 5mΩ). Pay particular attention to the turn-off snubber circuit–omitting it causes voltage spikes up to 2× the bus voltage, stressing upstream components. For dual-voltage systems (e.g., 48V/600V), isolate suppression networks to prevent ground loops; use isolated gate drivers with separate power supplies for each voltage domain.
Critical Elements of a Dynamic Load Dissipation System
Install a high-power resistor rated for at least 1.5 times the maximum expected regenerative energy to prevent thermal overload. Select resistance values between 10–50 ohms based on motor voltage and deceleration rate; lower values suit 400V systems, while higher ranges fit 690V or 800V setups. Avoid wirewound variants below 20 ohms in continuous-duty applications–they risk irreversible hotspot formation.
The switching device must handle peak currents exceeding nominal inverter ratings by 30%. IGBT modules with 1200V blocking voltage cover most industrial drives, but SiC MOSFETs are mandatory for >10kW systems demanding sub-5μs reaction times. Parallel-connected devices split thermal stress, but ensure balanced gate drive impedances (±5%) to prevent uneven conduction cycles.
A dedicated driver stage isolates the control logic from high-voltage transients. Optocouplers with >25kV/μs CMR withstand common-mode spikes during active dumping. Include a desaturation detection circuit monitoring collector-emitter voltage drop; this flags short-circuit events within 2μs and triggers immediate device shutdown to avert thermal runaway.
Voltage sensing requires precision (±1%) to avoid false triggers at thresholds nearing converter DC-link limits. Use a resistive divider with temperature-stable metal-film resistors (TC
Snubber networks across switching elements suppress voltage overshoot during turn-off. Place a 1–2nF ceramic capacitor in series with a low-inductance resistor (0.5–1Ω) no farther than 5mm from device terminals. For high-frequency suppression (>20kHz), add a ferrite bead rated for the full switching current to dampen parasitic oscillations.
Interface logic decouples safety circuits from operator controls via galvanic isolation. Implement redundant shutdown paths–primary via hardware comparator, secondary via microcontroller watchdog–ensuring disablement persists even if software hangs. Power supply decoupling caps (100nF ceramic + 10μF electrolytic) filter ripple on small-signal lines, critical for stable comparator reference voltages.
Step-by-Step Wiring for a Dynamic Resistor Control Module
Connect the voltage input terminals of the resistor unit directly to the DC bus outputs of your drive system, ensuring polarity matches the manufacturer’s specifications. Use 10 AWG or thicker stranded copper wire for currents exceeding 20A, secured with crimp lugs and heat-shrink tubing to prevent oxidation. Verify the DC bus voltage with a multimeter before attachment–most industrial systems operate at 540V, 650V, or 750V nominal levels. Avoid daisy-chaining; each module should have dedicated leads to the bus.
Attach the control signal wires to the enable pin and status feedback outputs, typically labeled “EN” and “FLT” on the module. For 24V logic systems, use shielded twisted pair cable (18-20 AWG) with the shield grounded only at the drive side to minimize noise coupling. Connect the enable signal through a normally-open relay or PLC output rated for at least 1A inductive load switching, with a flyback diode (1N4007) across the coil to suppress voltage spikes. Confirm signal integrity with an oscilloscope before powering the system.
Mount the resistor assembly away from heat-sensitive components, maintaining a minimum 150mm clearance for convection cooling. For forced-air applications, direct airflow across the resistor fins at 3-5 m/s using a 120mm fan (e.g., Delta AFB1212VH) with dust filters. Secure the enclosure with IP54-rated gaskets if installed in industrial environments, and bond the module’s metal housing to the system ground using a star-point configuration to prevent ground loops.
Validation and Troubleshooting
After wiring, test the activation threshold by adjusting the DC bus voltage upward while monitoring the module’s response with a clamp meter on the resistor leads. The resistive load should engage within 2-5ms of reaching the preset voltage limit (commonly 700V-800V). If erratic triggering occurs, check for loose connections with a torque screwdriver (target 1.5-2.0 Nm) and verify the absence of EMI by measuring noise levels below 50mV pp on the control lines. Replace any degraded contacts showing discoloration or resistance above 0.1Ω.
Common Voltage Threshold Settings and Adjustments
Set the upper clamping limit 10–20% above the nominal DC bus voltage to prevent transient overshoot damage. For a 600V system, target 660–720V as the activation point–this range balances protection and unnecessary energy dissipation. Lower thresholds risk premature switching, while higher values stress components.
Adjustable modules typically use multi-turn potentiometers for fine-tuning. A 10kΩ potentiometer with a linear taper allows granular control, enabling ±5% precision. Factory defaults often sit at 680V for industrial drives, but verify datasheets for application-specific recommendations–servo motors may require tighter margins than fans.
Dynamic Load Considerations
Variable-frequency drives under regenerative braking need threshold hysteresis–add 20–30V between turn-on and turn-off points. Without hysteresis, rapid cycling degrades switching elements. Example: A 700V turn-on with a 670V turn-off prevents chatter during load fluctuations. Test with an oscilloscope to confirm stability.
High-power systems (>100kW) benefit from dual-stage protection. Primary clamping activates at 750V, while secondary crowbar protection engages at 800V, diverting excess energy to external resistors. This tiered approach extends component lifespan by reducing thermal stress on primary dissipators.
Environmental conditions influence threshold selection. Ambient temperatures above 40°C necessitate derating–reduce the upper limit by 5% for every 10°C increase. Conversely, cryogenic applications may tolerate higher thresholds due to reduced leakage currents in semiconductor junctions.
Adjustment Procedure
Begin with a DC bus voltage at 80% nominal load. Gradually increase voltage until dissipation triggers–record this value. Use an isolation transformer to avoid ground loops during measurements. For safety, limit testing to 90% of absolute maximum ratings (e.g., 950V for a 1000V-rated device).
Active modules featuring microcontrollers allow software-based calibration. Firmware typically includes a “learn” mode that auto-detects thresholds during a controlled ramp-up. Override defaults only if operating conditions deviate significantly–most OEM settings optimize for 480VAC input, 3kHz switching frequency, and 5% line variation tolerance.
